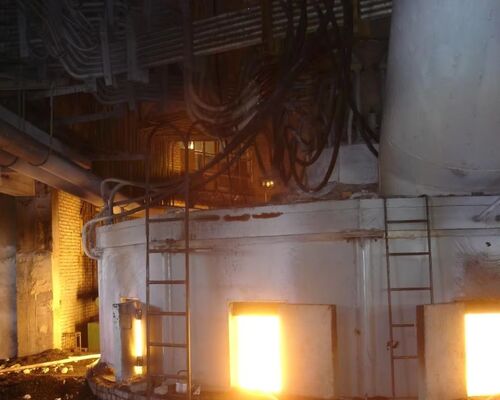

Industrial Furnace for Ferro Silicon Production Submerged Arc Furnace for Metal Melting Induction Furnace for Smelting

Lieu d'origine Chine
Nom de marque Shaanxi Chengda
Certification ISO 9001
Numéro de modèle Négocier en fonction de la capacité de traitement des équipements
Quantité de commande min 1 unité
Prix The price will be negotiated based on the technical requirements and supply scope of Party A
Détails d'emballage Discuter selon les exigences spécifiques de la partie A
Délai de livraison 2 mois
Conditions de paiement LC, T/T, Western Union
Capacité d'approvisionnement Chaîne d'approvisionnement de production complète, livraison à temps et respect des normes de qu
Détails sur le produit
Mettre en évidence

industrial furnace for ferro silicon

,

submerged arc furnace for metal melting

,

induction smelting furnace for hazardous waste

Laisser un message
Description de produit

Key attributes


type
Induction Furnace
voltage
226V, 220V Electrical Equipment, 440 V
usage
Melting Furnace
key selling points
Remote Control
warranty
1 Year
core components
PLC, Gearbox
machinery test report
*
video outgoing-inspection
*
place of origin
Shaanxi, China
weight (t)
1
brand name
HANI
Material
Stainless Steel
Furnace type
Low hood submerged arc furnace
Rated power
4.2MVA
Transformer apparent power
3x11000KVA
Daily output
178t
Extreme circle diameter
3850mm
Application
For Ferroalloy melting
Electrode diameter:
1550mm
Furnace depth
3800mm
Secondary voltage
154-226-265v
Transformer platform height
12000mm

Packaging and delivery

Selling Units
Single item
Specification
Transformer apparent power
KVA
3×11000
Single phase
Furnace type

Low hood submerged arc furnace

Production varieties

High carbon ferrochrome

Daily output
t
178

Annual output
t
58740
330days
Iron furnace times
times
8
within24h
Average amount of iron
t/furnace
22

Maximum amount of iron
t/furnace
22

Electrode diameter
mm
1550
Self-baking electrode
Extreme circle diameter
mm
3850

Furnace diameter
mm
9500

Furnace shell diameter
mm
12000
Inner diameter
Secondary voltage
v
154-226-265
Inner diameter
Rated current
A
84310

Common secondary voltage
v
226

Common secondary current
A
84310

Electrode working stroke
mm
1400

Electrode maximum stroke
mm
1800

Electrode maximum stroke
mm
20500

Transformer platform height
mm
12000

Our Services
1. Customize according to your requirements and provide you with an effective quotation.
2. We have professional engineers to design the plan for you.
3. Our team will provide professional advice and help for your whole project.
4. Our factory is always ready to welcome field visits.
5. Ensure high quality after-sales service.


FAQ

Q1: Are you trading company or manufacturer? A: We are manufacturer. Q2: How long is your delivery time? A: Generally it is 60 days, it is according to quantity requires.
Q3: What is the term of payment? A: Payment <=1000USD,100%in advance. Payment>=1000USD,30% T/T in advance, balance before shipment.

lf you are interested in this equipment, please don't hesitate to contact us!
